How to Create an Installer for a Windows Service (.NET Framework) Using WiX

Create the Windows Service project

Let’s begin by creating the Windows Service project in Visual Studio:

• Go to File - New - Project.
• Select Windows Service (.NET Framework) from the list of templates.
• Configure the project and set the appropriate .NET Framework version.
• Click Create. The new project will appear in the Solution Explorer.

Configure the Service

Next, we have to define the service logic in the Service.cs file so we can specify what happens when you start, stop, or pause the said service.

In our example, the service will monitor a folder and log each new file added to the target folder. I’ve renamed the Service.cs file to FolderWatcherService.cs, for clarity.

public partial class FolderWatcherService : ServiceBase
{
    private FileSystemWatcher watcher;
    public FolderWatcherService()
    {
        InitializeComponent();
        this.ServiceName = "MyDemoService";
    }
    protected override void OnStart(string[] args)
    {
        try
        {
            string pathToWatch = @"C:\Users\R\Desktop\TargetFolder";
            if (!Directory.Exists(pathToWatch))
                Directory.CreateDirectory(pathToWatch);
            watcher = new FileSystemWatcher(pathToWatch);
            watcher.Created += OnCreated;
            watcher.IncludeSubdirectories = false;
            watcher.EnableRaisingEvents = true;
            EventLog.WriteEntry("MyDemoService started and is watching the folder.");
        }
        catch (Exception ex)
        {
            EventLog.WriteEntry($"Error in OnStart: {ex.Message}", EventLogEntryType.Error);
        }
    }
    protected override void OnStop()
    {
        watcher?.Dispose();
        EventLog.WriteEntry("MyDemoService stopped.");
    }
    private void OnCreated(object sender, FileSystemEventArgs e)
    {
        string logPath = @"C:\MyServiceLog.txt";
        File.AppendAllText(logPath, $"[{DateTime.Now}] New file added: {e.FullPath}{Environment.NewLine}");
    }
}

Create the Setup Project

Before you create a WiX setup, install the HeatWave Visual Studio extension from the Visual Studio Marketplace.

To add the setup project:

- Navigate to File → New → Project.

- Select the MSI Package template from the list of templates.

- Add the project's details, then click on Create.

- You should see the project already in the solution explorer.

Configure the Setup Project

Now, it’s time to configure the WiX setup project. The project template comes with three .wxs files. Each .wxs file has to be configured so they can define how the Windows Service is installed, registered, and managed on the user's machine.

First, let’s configure the Package.wxs file. It is the installer’s entry point where we set the package identity, version, and upgrade behavior. Also, we'll connect the installer’s Feature to the component group, which contains the service files.

<?xml version="1.0" encoding="utf-8"?>
<Wix xmlns="http://wixtoolset.org/schemas/v4/wxs"
     xmlns:util="http://wixtoolset.org/schemas/v4/wxs/util">
  <Package Id="MyCompany.MyService"
           Name="MyDemoService"
           Manufacturer="Caphyon"
           Version="1.0.0.0"
           Scope="perMachine">
    <MajorUpgrade DowngradeErrorMessage="A newer version is already installed." />
    <Feature Id="Main" Title="Main Feature">
      <ComponentGroupRef Id="ServiceComponents" />
    </Feature>
  </Package>
</Wix>

Next, we define the installation folder structure in the Folder.wxs file.

<?xml version="1.0" encoding="utf-8"?>
<Wix xmlns="http://wixtoolset.org/schemas/v4/wxs">
  <Fragment>
    <Directory Id="ProgramFiles64Folder">
      <Directory Id="DIR_Company" Name="MyCompany">
        <Directory Id="INSTALLFOLDER" Name="MyDemoService" />
      </Directory>
    </Directory>
  </Fragment>
</Wix>

Finally, we configure the ExampleComponents.wxs file to define what files will be installed inside the INSTALLFOLDER. Moreover, here we configure the service installation using:

- <ServiceInstall> → register the service and set its startup type, account, and description.

- <ServiceControl> → manages service start/stop during install/uninstall.

<?xml version="1.0" encoding="utf-8"?>
<Wix xmlns="http://wixtoolset.org/schemas/v4/wxs"
     xmlns:util="http://wixtoolset.org/schemas/v4/wxs/util">
  <Fragment>
    <ComponentGroup Id="ServiceComponents">
      <Component Id="cmp.ServiceExe" Directory="INSTALLFOLDER">
        <File Id="fil.ServiceExe"
              Source="$(var.MyDemoService.TargetPath)"
              KeyPath="yes" />
        <ServiceInstall Id="svc.Install"
                        Name="MyDemoService"
                        DisplayName="My Demo Service"
                        Description="Watches a folder and logs newly added files."
                        Type="ownProcess"
                        Start="auto"
                        ErrorControl="normal"
                        Account="LocalSystem" />
        <ServiceControl Id="svc.Control"
                        Name="MyDemoService"
                        Start="install"
                        Stop="both"
                        Remove="uninstall"
                        Wait="yes" />
      </Component>
    </ComponentGroup>
  </Fragment>
</Wix>

Make sure your installer package is configured for per-machine installation. Remember: the user running the installer must have admin rights.

Build and Install

Build the project to generate the installer, then navigate to the project’s output directory and run the installer.

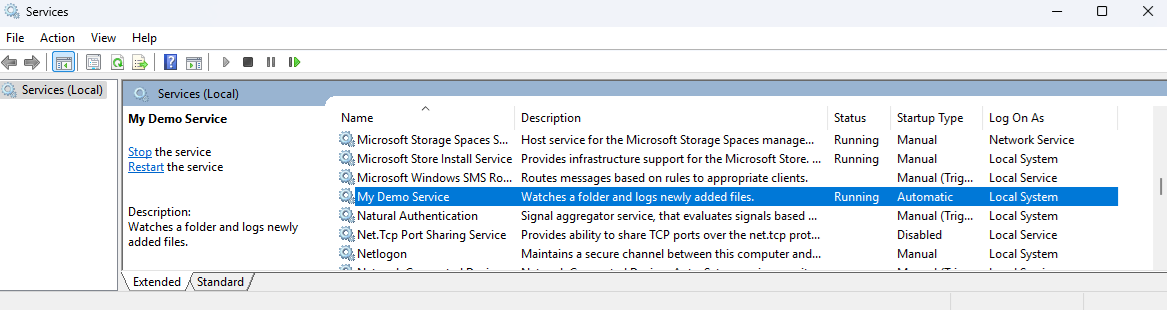

After installation, open the Services Console Manager. Your service should appear in the list with the configured name and description. You can add some files to the target directory and then check the log file to confirm the logging works.

Creating the Service Installer using Advanced Installer

The following steps require at least the Professional edition of Advanced Installer.

Advanced Installer provides a more user-friendly alternative to service installer creation through its intuitive graphical user interface. Here is a guide on how to create your service installer:

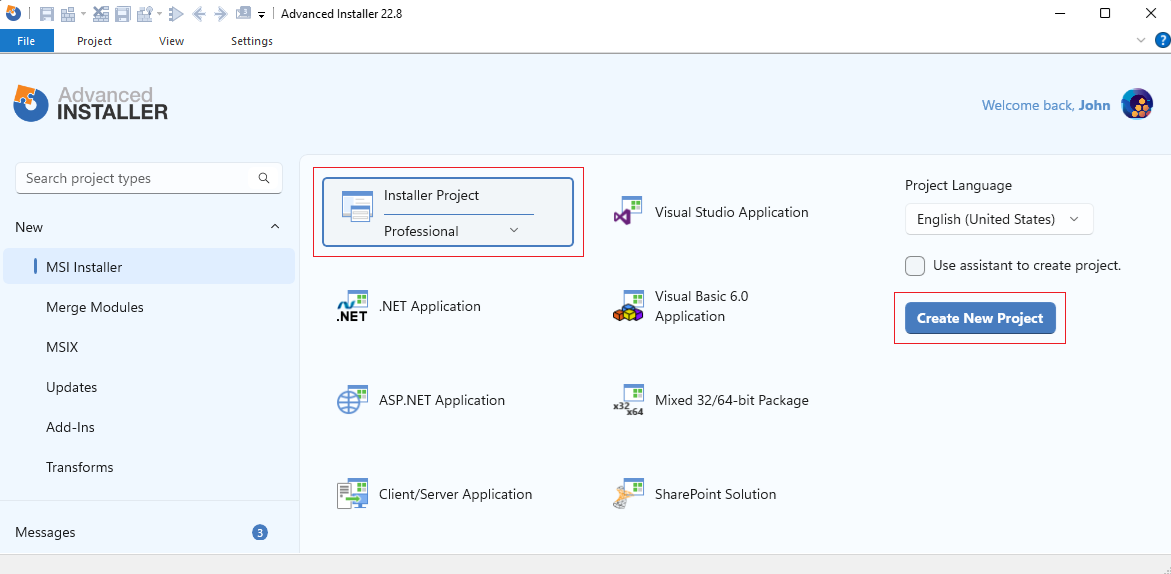

1. Start a new project:

- Launch Advanced Installer.

- On the Start Page, select Professional Project or higher and then click Create New Project.

2. Add the service files:

- Navigate to the Files and Folders view.

- Add the files related to your service in the Application Folder.

3. Define the new service:

- Go to the Services view.

- Click the New Service button.

- In the opened dialog, select the executable file of your service that you’ve added in the previous step.

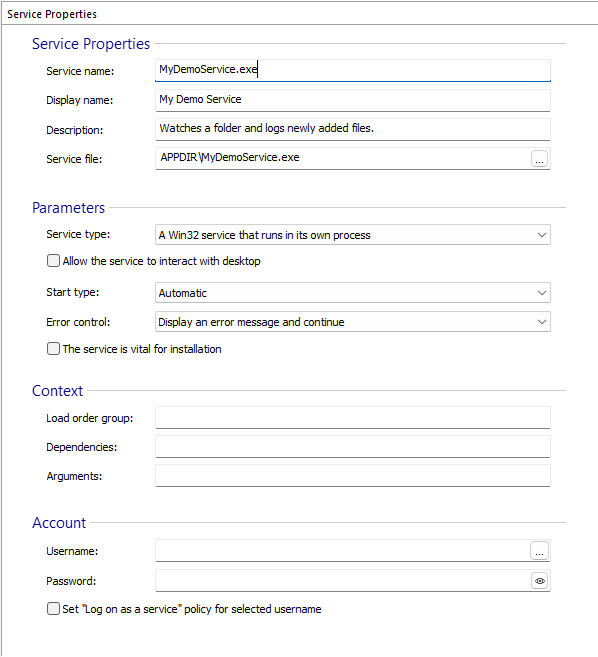

5. Customize the Service (optional):

Once you add your service, you will find a wide range of customization options directly within the GUI. These allow you to configure several aspects of the service according to your requirements.

Once you have finished configuring your service, click the Build button to generate the installer. Then, run it to install the service on your machine. That’s it. Your service should now appear in the Services Control Manager.

Conclusion

The WiX toolset stands as a fantastic option for creating an installer for a Windows Service (.NET Framework). It provides controls through its XML-based configuration. However, this approach demands a steeper learning curve.

Advanced Installer stands out as a far more intuitive solution. It streamlines the installer process creation through its graphical user interface. It makes the process significantly easier and more efficient.
