Preserve User Settings Across Updates in an MSIX Package

Creating the Application

For this tutorial, I created a simple WinForms application that will be installed and later updated.

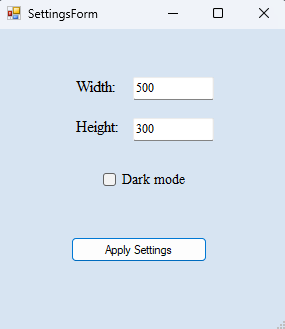

To simulate user-specific configuration, I added a configuration form that allows the users to customize the main windows. The configuration form includes fields for setting the width, the height, and a checkbox to enable the dark mode.

Saving User Configuration Settings

Now, let’s handle how user settings are saved. These settings are loaded at startup and used to configure the main window.

Default Approach in .NET

A common method to save user settings in a .NET app is:

1. Right-click on the project → Properties.
2. Go to the Settings tab.
3. Define new settings to store and retrieve information for your application.

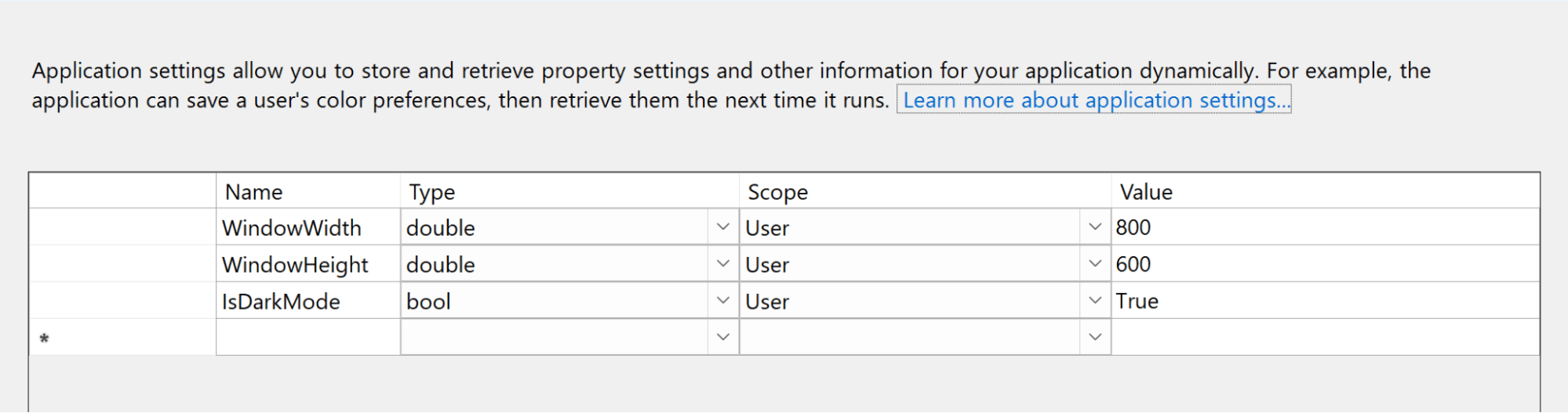

In my sample app, I added settings for window width, height, and theme, along with default values.

These settings are saved in a user.config file located in a versioned folder in the user’s profile, such as:

AppData\Local\Packages\<PackageFamilyName>\LocalCache\Local\<AppName>\<AppName>_Url_<Hash>\<Version>\user.config

Copy

To update or retrieve them, use the Properties.Settings.Default object.

Here’s how to update the settings.

private void btnSaveSettings_Click(object sender, RoutedEventArgs e)
{
    //…
    Properties.Settings.Default.WindowWidth = txtWidth;
    Properties.Settings.Default.WindowHeight = txtHeight;
    Properties.Settings.Default.IsDarkMode = chkTheme.IsChecked == true;
    Properties.Settings.Default.Save();
    MessageBox.Show("Settings saved successfully!");
    //…
}

Copy

And here’s how to retrieve the settings on startup.

public MainWindow()
{
    InitializeComponent();
    this.Width = Properties.Settings.Default.WindowWidth;
    this.Height = Properties.Settings.Default.WindowHeight;
    if (Properties.Settings.Default.IsDarkMode)
    {
        // Apply your dark theme here
    }
}

Copy

Migrating the User Settings Between Versions - The Core Challenge

The critical part is migrating the user settings between versions during an update.

With MSI, this is straightforward using the Properties.Settings.Default.Upgrade() method.

This method runs once after a new version is installed and migrates the settings from the previous version.

This works because MSI stores configuration files for different versions under the same base folder within the user’s AppData\Local directory.

\..\<AppName>\<AppName>_Url_<Hash>
			↳ <1.0.0>\user.config
				↳ <2.0.0>\user.config

The Upgrade() method looks for the shared location, for the configuration file of the previous version and automatically performs the migration.

Why It Doesn’t Work with MSIX

Unfortunately, with MSIX, the Upgrade() method does not work.

That's because MSIX isolates app data per version and assigns each version a unique hash.

This results in separate base paths for different versions.

\..\<AppName>\<AppName>_Url_<V1Hash>
			↳ <1.0.0>\user.config
	\..\<AppName>\<AppName>_Url_<V2Hash>
			↳ <2.0.0>\user.config

As a result, the Upgrade() method can not automatically migrate the previous version’s settings.

To work around this you can use a custom script or a custom logic that copies the <1.0.0>\user.config into the \..\<AppName>_Url_<V2Hash> folder. This puts them under the same base path so the new version can access the old settings.

Recommended Approach – Use a JSON File

A more reliable method for storing user settings is to use a custom JSON file. This gives you full control over where the data is stored and how it’s managed across updates.

Unlike the Properties.Settings approach, you don’t have to handle migrations as the file remains in the same location after updates.

{
  "WindowWidth": 800,
  "WindowHeight": 600,
  "IsDarkMode": true
}

To ensure the settings persist between updates, save the file to a path under %LocalAppData%. At startup, the application simply reads from this JSON file and applies the settings to configure the main form.

string appData = Environment.GetFolderPath(Environment.SpecialFolder.LocalApplicationData);
string folder = Path.Combine(appData, "MyCompany", "MyApp");
Directory.CreateDirectory(folder);
string settingsPath = Path.Combine(folder, "AppSettings.json");

Installing the Application

Once your application is ready to be deployed, you can create the MSIX package for version 1.0 of the application.

For a step-by-step guide on how to create an MSIX package with Advanced Installer, check the article here.

Install the application and run it.

Enter some values in the configuration form and click Apply Settings.

The settings will be saved to the AppSettings JSON file in the folder:

%LocalAppData%\MyCompany\MyApp

Updating the Application

After installing version 1.0 of the application, it's time to simulate an update:

• Make changes to your application
• Update the Assembly version to 2.0

Then, in your Advanced Installer project:

• Replace the old resource files with those from the 2.0 build
• Increase the package version number to 2.0 on the Product Details page.

Build the project to generate the new MSIX package and then install the updated application.

You’ll notice that the form is still configured with settings from version 1.0. This confirms that your user settings have been preserved across the update thanks to storing the configuration file in a persistent directory under %LocalAppData%.

Conclusion

When deploying an application through MSIX and needing to preserve user-specific settings, it’s recommended to save the settings in a file located in a user-specific directory, like %LocalAppData%.

This location isn’t affected by version updates, ensuring a seamless user experience from one version to the next.
