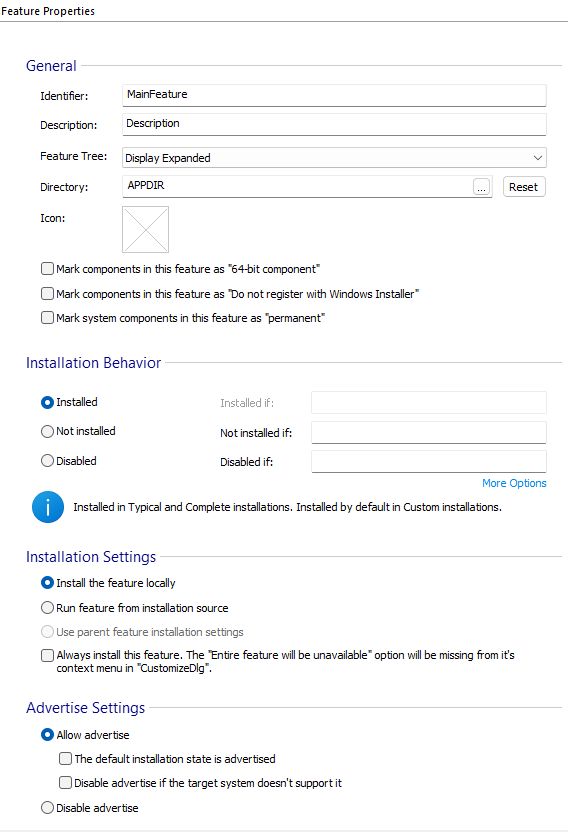

Feature Properties

General

Identifier

This is the key used to identify a specific feature. It is used in conditions to refer to the installed state or the action state of a feature or in some Windows Installer Properties like ADDLOCAL, ADDSOURCE, REINSTALL, REMOVE etc.

NoteWhen changing a feature's identifier, all the conditions and properties that refer to this identifier must be updated accordingly.

Description

A longer description of the feature. This text will appear in the Customize Dialog when the feature is selected in the features tree. You can localize this value.

Feature Tree

There are three options for the initial display of a feature:

  • Not Displayed - the feature will not be displayed to the user in any dialog
  • Display Collapsed - the feature will be displayed collapsed in the features tree from the Customize dialog
  • Display Expanded - the feature will be displayed expanded in the features tree.

TipThe state of "collapsed" or "expanded" makes sense only if the feature has sub-features.

Directory

The directory that can be configured in CustomizeDlg dialog when this feature is selected in the features tree. This must be a user defined directory that has an uppercase identifier.

Icon

The feature will have the selected icon prepended in the Quick Selection List control.

Mark components in this feature as "64-bit component"

All the components from the feature are marked as 64-bit components.

Mark components in this feature as "Do not register with Windows Installer"

If this option is selected all the components from the feature will have an empty GUID and thus it will not be registered. This means that the components cannot be removed, repaired or patched by the installer. This might be useful if you intend to service/uninstall the components yourself (using a custom action, for instance).

Installation behavior

Every feature has an attached integer number which represents the feature's "Install level". This install level is compared with the user-selected application install level and it dictates if the feature should be installed or not. There are three well known install levels values: 0 (Disabled), 1 (Typical) and 4 (Complete).

You can select one of the following install behavior for the feature base on a correspondent install level:

  • Installed (Install Level 1 - Typical).
    The feature will be installed on both Typical and Complete installations. The user can choose not to install it from "CustomizeDlg" when performing a Custom installation.
  • Not installed (Install Level 4 - Complete).
    The feature will not be installed on a Typical installation. The user can choose to install it from "CustomizeDlg" when performing a Custom installation or by performing a Complete installation from "SetupTypeDlg".
  • Disabled (Install Level 0 - Disabled).
    The feature will be disabled. The user has no possibility to change it's installation state. It will not be displayed during the installation.

Add Install-time Conditions

Default feature installation behavior can be changed at install-time using conditions. Use the [ Add Install-time Conditions ] display availlable options.

You can set install levels other than Installed, Not Installed and Disable in the Conditional Levels Dialog. Use the [ More Options ] link to edit additional conditional install levels for the selected feature.

Note“Installation Behavior“ fields should not contain conditions based on a feature's or component's state because the expressions in these fields are evaluated before the installer checks the state of features and components. The expressions will always return false due to this fact.

Install Settings

  • Install feature locally
    The feature and all it's resources will be copied on the target computer.
  • Run feature from installation source
    The components of this feature that are not marked for local installation will be installed to run from source. This is the default behaviour, which the user can change from the Customize dialog.
  • Use parent feature installation settings
    The feature's state is the same as the parent feature's state. This option is available only if the feature has a parent.
  • Always install the feature
    The User Interface of Windows Installer does not display an option to change the feature's state. The "Entire feature will be unavailable" option will not be available for this feature in "CustomizeDlg."

Advertise Settings

Configure the settings available from a feature's context menu in the CustomizeDlg dialog during installation.

Allow advertise

This feature can be installed as advertised but this is not the default installation option.

  • The default installation state is advertised.
    The feature will be installed by default as advertised.
  • Disable advertise if the target system doesn't support it
    Advertising for this feature is disabled if the shell does not support the Windows Installer descriptors.

Disable advertise

The feature is not allowed to be advertised.

Builds

In case you have defined more that one build in the Builds page, you can choose to remove the feature from some builds. If a feature is removed from a build, all other resources that demand that feature (components, component members, class entries, type libraries...) will also be removed from the build.

Include feature in all builds

Use this option if the feature should be present in all your builds.

Include feature only in the selected builds

This option allows you to specify the exact builds that will contain the feature. You can select those builds in the list below.
