SQL Server Database Browse (ISqlDatabaseBrowse)

Overview

The SQL Server Database Browse operation discovers databases on a specified server/instance and populates Windows Installer properties (and optional UI controls) with the results. Use it to let users pick a database at install time, then pass the selected value to your connection/query logic.

This object is created under SqlDatabasesComponent and appears in the SQL Operations tab in Advanced Installer.

Overview

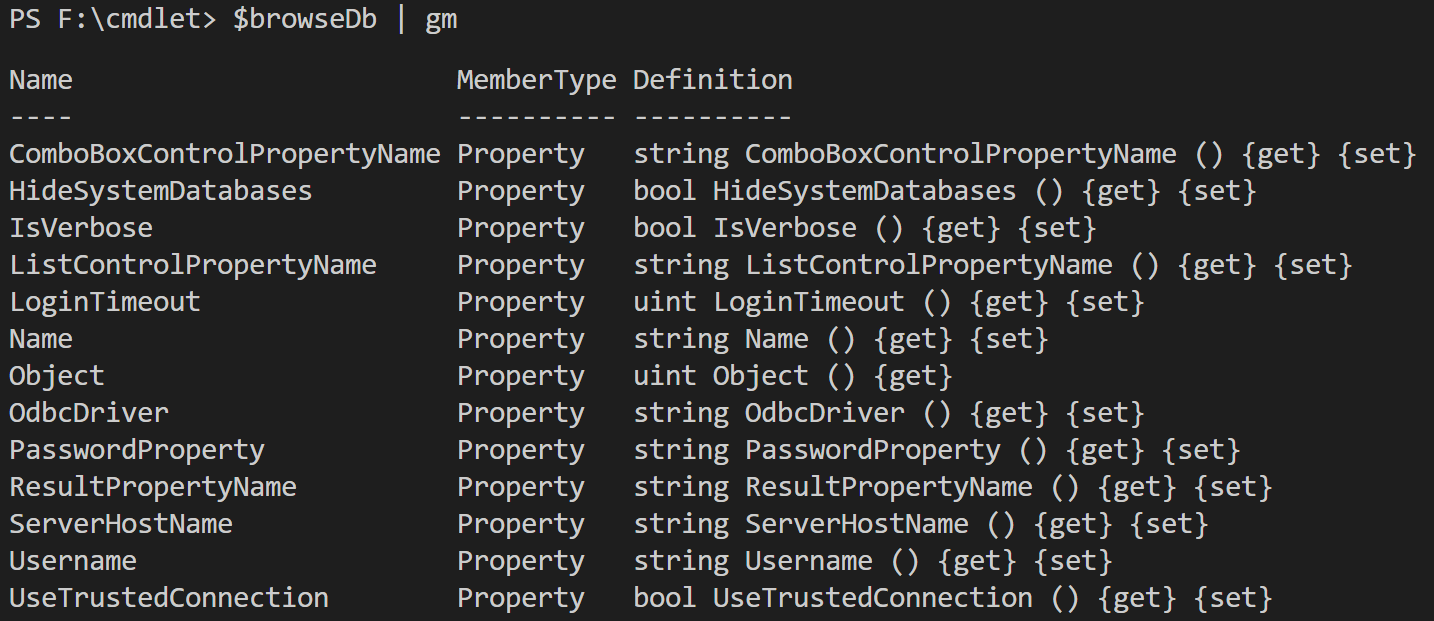

Isqldatabasescomponent browse db

Methods

  • (No methods available for ISqlDatabaseBrowse)

Properties

  • Name (string) {get}{set} Gets or sets the display name of this browse operation.
  • ServerHostName (string) {get}{set} Gets or sets the target SQL Server host/instance to browse (e.g., localhost or SERVER\SQLEXPRESS).
  • UseTrustedConnection (bool) {get}{set} When true, uses Windows Authentication; when false, uses Username/PasswordProperty.
  • Username (string) {get}{set} Gets or sets the SQL login to use when UseTrustedConnection is false.
  • PasswordProperty (string) {get}{set} Gets or sets the installer property name that supplies the password at runtime (safer than hard-coding a password).
  • OdbcDriver (string) {get}{set} Gets or sets the ODBC driver name used for the browse operation (e.g., ODBC Driver 17 for SQL Server).
  • HideSystemDatabases (bool) {get}{set} When true, hides system databases (e.g., master, model, msdb, tempdb) from the results.
  • LoginTimeout (uint) {get}{set} Gets or sets the login timeout in seconds used when connecting to the server to enumerate databases.
  • IsVerbose (bool) {get}{set} Enables verbose logging for this browse operation when true.
  • ResultPropertyName (string) {get}{set} Gets or sets the installer property that will receive the selected database name.
  • ComboBoxControlPropertyName (string) {get}{set} Binds the browse results to the specified MSI ComboBox control property (for UI population).
  • ListControlPropertyName (string) {get}{set} Binds the browse results to the specified MSI List control property (alternative to ComboBox).
  • Object (uint) {get} Read-only internal identifier for this browse operation instance.

Sample commands

# SQL Operations - Database Browse

$advinst  = New-Object -ComObject "AdvancedInstaller"
$project  = $advinst.CreateProject($advinst.ProjectTypes.Enterprise)

# Create a Database Browse operation
$browseDb = $project.SqlDatabasesComponent.NewBrowseDatabase("Browse Database Connection")

# Configure server and credentials
$browseDb.ServerHostName       = "localhost"
$browseDb.UseTrustedConnection = $true
# Alternative (SQL login):
# $browseDb.UseTrustedConnection = $false
# $browseDb.Username = "dbuser"
# $browseDb.PasswordProperty = "DB_PASSWORD"

# Driver and behavior
$browseDb.OdbcDriver        = "ODBC Driver 17 for SQL Server"
$browseDb.HideSystemDatabases = $true
$browseDb.LoginTimeout        = 30
$browseDb.IsVerbose           = $true

# Bind results to MSI properties / UI controls
$browseDb.ResultPropertyName          = "SELECTED_DB"
$browseDb.ComboBoxControlPropertyName = "DB_COMBOBOX"
# or use a list control:
# $browseDb.ListControlPropertyName   = "DB_LIST"

$project.SaveAs("F:\cmdlet\output\Database Browse.aip")
